Parameterized Color Cell Compression

I came across a quaint and adorable paper from SIGGRAPH’86: Two bit/pixel Full Color Encoding. It describes Color Cell Compression, an early ancestor of Adaptive Scalable Texture Compression which is all the rage these days.

Like ASTC, it offers a fixed 2 bits/pixel encoding for color images. However, the first of many d’awwws in this paper comes as early as the second line of the abstract, when it suggests that a fixed rate is useful not for the random access we covet for rendering today, but simply for doing local image updates!

The algorithm can compress a 640×480 image in just 11 seconds on a 3MHz VAX 11/750, and decompress it basically in real time. This means that it may allow full color video, unlike these impractical, newfangled transform based algorithms people are researching.

CCC actually works astonishingly well. Here’s our politically correct Lenna substitute:

mandrill

The left half of the image is 24bpp, while the right is is 2bpp. Really the only way to tell is in the eyes, and I’m sure there’s an interesting, evolutionary explanation for that.

If we zoom in, we can get a sense of what’s going on:

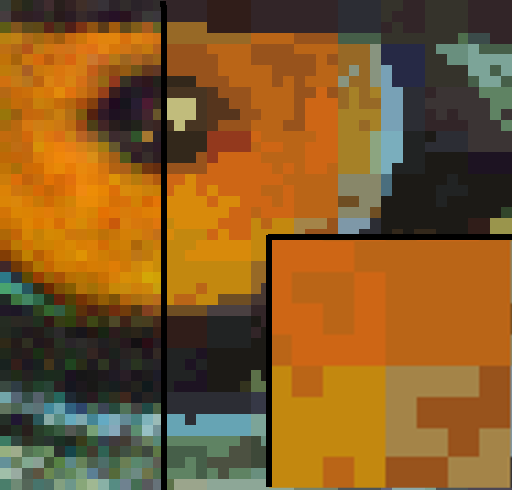

mandrill_eye

The image is divided into 4×4 cells, and each cell is composed of only two different colors. In other words, the image is composed of 4×4 bitmaps with a two color palette, each chosen from an image-wide 8bit palette. A 4×4 bitmap would take up 16 bits, and two 8bit palette indices would take up 16 bits, for a total of 32 bits per 16 pixels — or 2 bits per pixel.

The pixels in each cell are divided into two groups based on luminosity, and each group gets its own color based on the average color in the group. One of the reasons this works really well, the author says, is because video is always filmed so that a change in chromaticity has an associated change in luminosity — otherwise on-screen features would be invisible to the folks at home who still have black&white TVs!

We now know enough to implement this lovely algorithm: find an 8bit palette covering the image, then for each cell of 4×4 pixels, divide the pixels into two groups based on whether their luminosity is over or under the cell average. Find the average color of each part, and find its closest match in the palette.

However, let’s experiment! Why limit ourselves to 4×4 cells with 2 colors each from a palette of 256? What would happen if we used 8×8 cells with 3 colors each from a palette of 512? That also comes out to around 2 bpp.

Parameterizing palette and cell size is easy, but how do we group pixels into k colors based on luminosity? Simple: instead of using the mean, we use k-means!

Here’s a colorful parrot in original truecolor on the left, CCC with 4×4 cells in the middle, and 32×32 cells (1.01 bpp) on the right. Popartsy!

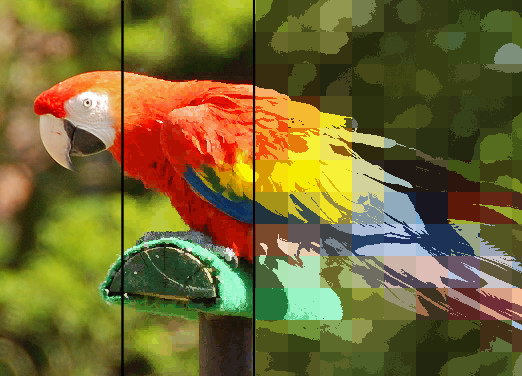

ara3

Here’s what we get if we only allow eight colors per horizontal line. The color averaging effect is really pronounced:

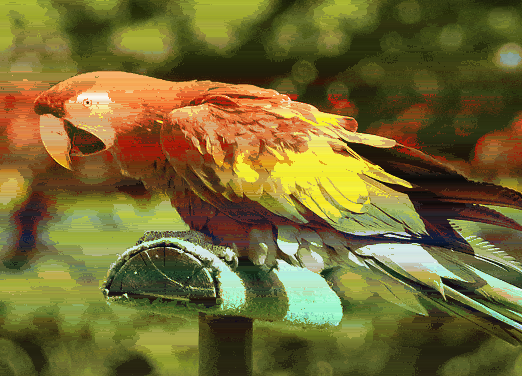

ara4

And here’s 3 colors per 90×90 cell:

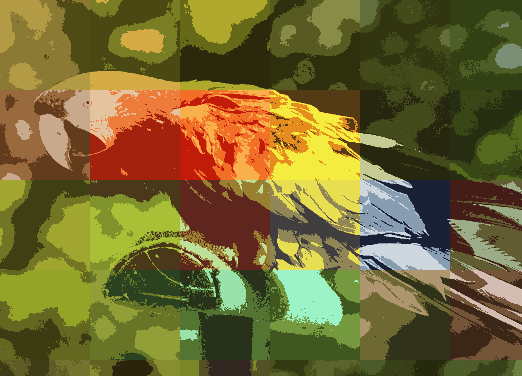

ara6

The best part about this paper is the discussion of applications. For 24fps video interlaced at 320×480, they say, you would need a transfer rate of 470 kb/s. Current microcomputers have a transfer rate of 625 kb/s, so this is well within the realm of possibility. Today’s standard 30 megabyte hard drives could therefore store around 60 seconds of animation!

Apart from the obvious benefits of digital video like no copy degradation and multiple resolutions, you can save space when panning a scene by simply transmitting the edge in the direction of the pan!

You can even use CCC for electronic shopping. Since the images are so small and decoding so simple, you can make cheap terminals in great quantities, transmit images from a central location and provide accompanying audio commentary via cable!

In addition to one-to-many applications, you can have one-to-one electronic, image based communication. In just one minute on a 9600bps phone connection, a graphic arts shop can transmit a 640×480 image to clients for approval and comment.

You can even do many-to-many teleconferencing! Imagine the ability to show the speaker’s face, or a drawing they wish to present to the group on simple consumer hardware!

Truly, the future is amazing.


Here’s the JuicyPixel based Haskell implementation I used. It doesn’t actually encode the image, it just simulates the degradation. Ironically, this version is slower than the authors’ original, even though the hardware is five or six orders of magnitude faster!

Apart from the parameterization, I added two other improvements: Firstly, instead of the naive RGB based average suggestion in the paper, it uses the YCrCb average. Second, instead of choosing the palette from the original image, it chooses it from the averages. This doesn’t matter much for colorful photograph, but gives better results for images lacking gradients.

Technically correct: Inversed regex

How do I write a regex that matches lines that do not contain hi?

That’s a frequently asked question if I ever saw one.

Of course, the proper answer is: you don’t. You write a regex that does match hi and then invert the matching logic, ostensibly with grep -v. But where’s the fun in that?

One interesting theorem that pops up in any book or class on formal grammars is that regular languages are closed under complement: the inverse of a regular expression is also a regular expression. This means that writing inverted regular expressions is theoretically possible, though it turns out to be quite tricky

Just try writing a regex that matches strings that does not contain “hi”, and test it against “hi”, “hhi” and “ih”, “iih” and such variations. Some solutions are coming up.

A way to cheat is using PCRE negative lookahead: ^(?!.*foo) matches all strings not containing the substring “foo”. However, lookahead assertions require a stack, and thus can’t be modelled as a finite state machine. In other words, they don’t fit the mathematical definition of a regular expression, and therefore disqualify.

There are simple, well-known algorithms for turning regular expressions into non-deterministic finite automata, and from there to deterministic FA. Less commonly used and known are algorithms for inverting a DFA and for generating familiar textual regex from it.

You can find these described in various lecture notes and slides, so I won’t recite them.

What I had a harder time finding was software that actually did this. So here is a Haskell program. It’s highly suboptimal but it does the job. When executed, it will ask for a regex and will then output a grep command that matches everything the regex does not (without -v, obviously).

The expressions it produces are quite horrific; it’s computer generated code, after all.

A regular expression for matching strings that do not match .*hi.* could be grep -E '^([^h]|h+$|h+[^hi])*$'.

This app, however, suggests grep -E '^([^h]([^h]|)*||([^h][^h]*h|h)|([^h][^h]*(h(hh*[^hi]|[^hi]))|(h(hh*[^hi]|[^hi])))((hh*[^hi]|[^h])|)*|([^h][^h]*(h([^hi][^h]*h|h))|(h([^hi][^h]*h|h)))(([^hi][^h]*h|h)|)*)$'

It still works exactly as stated though!

The app just supports a small subset of regex, just enough to convince someone that it works, and as a party trick lets you answer the original question exactly as stated.

Technically correct is the best kind of correct.
